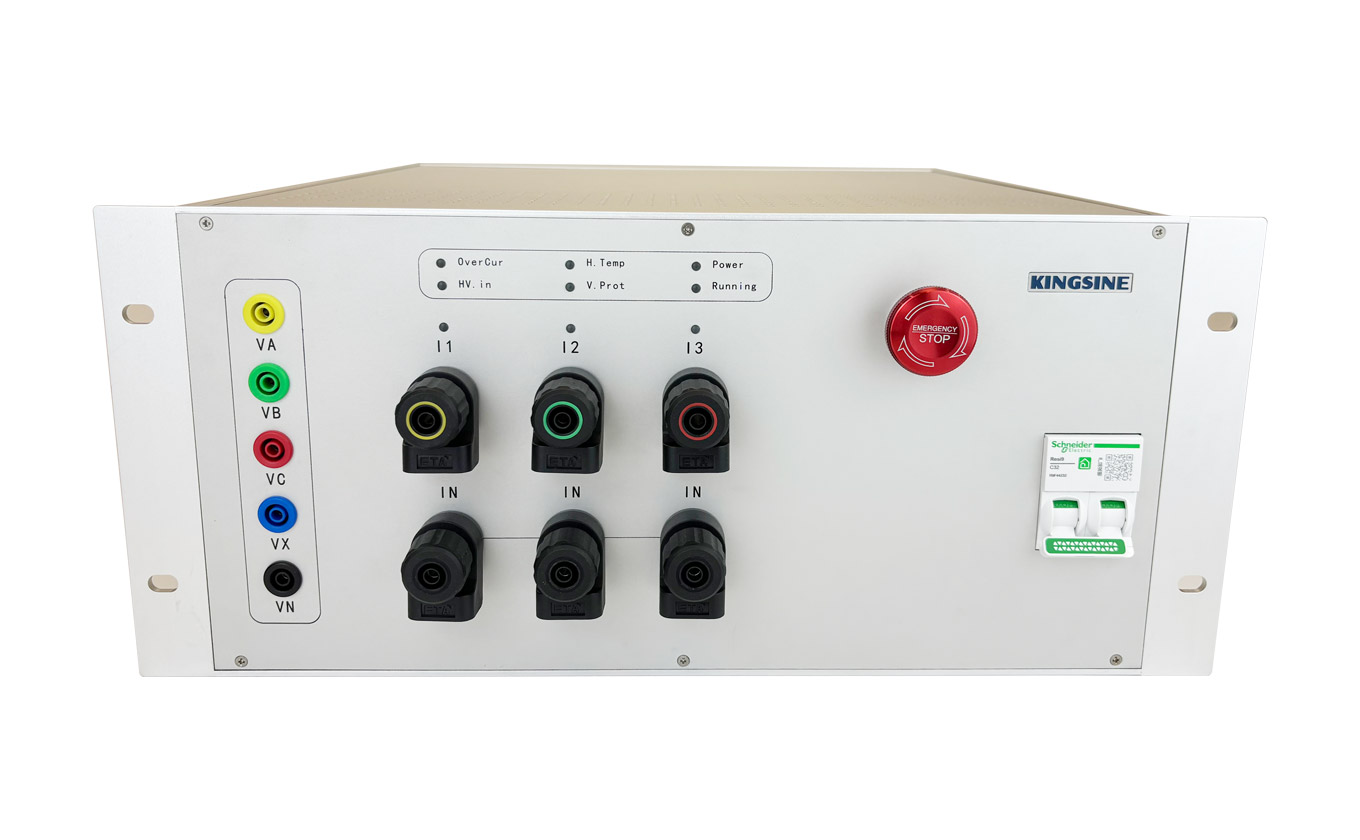

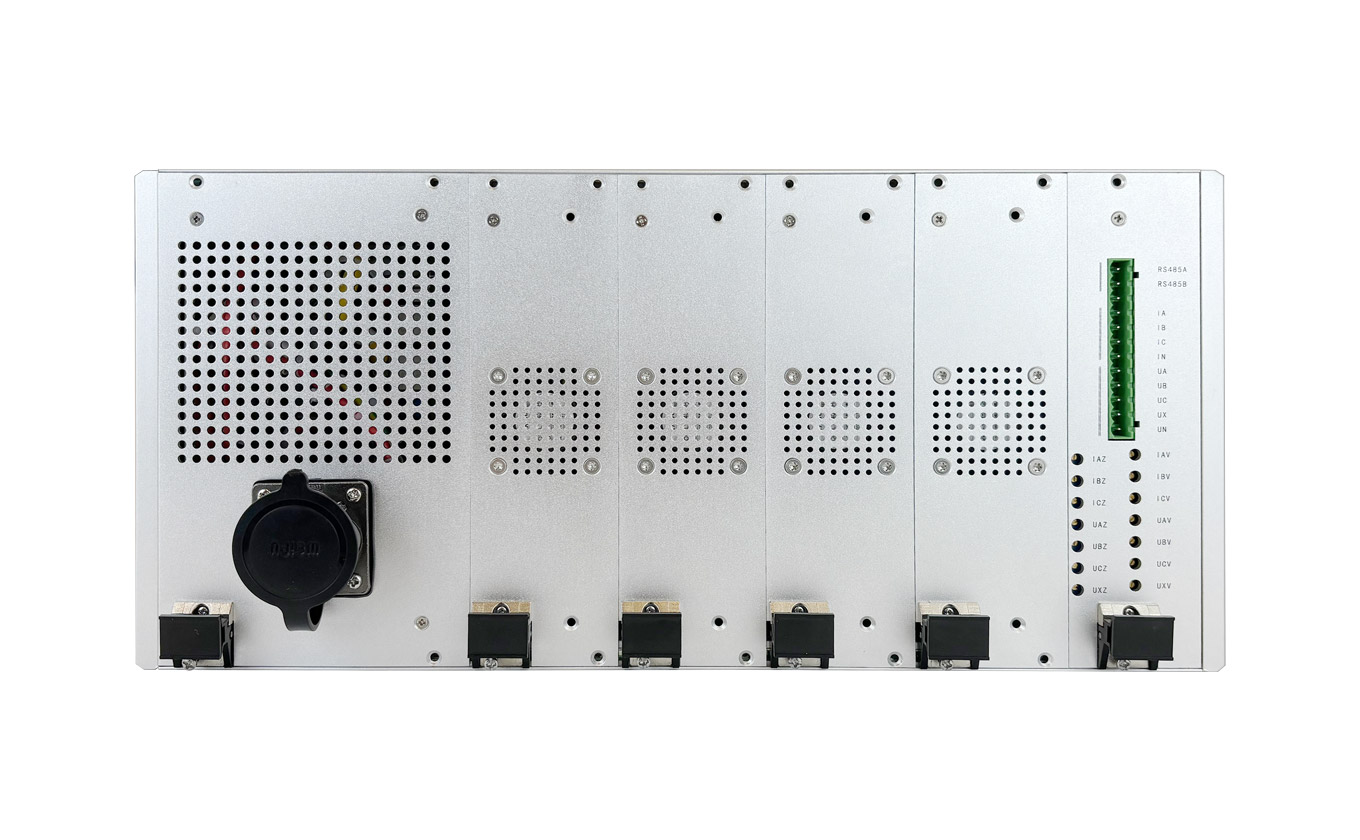

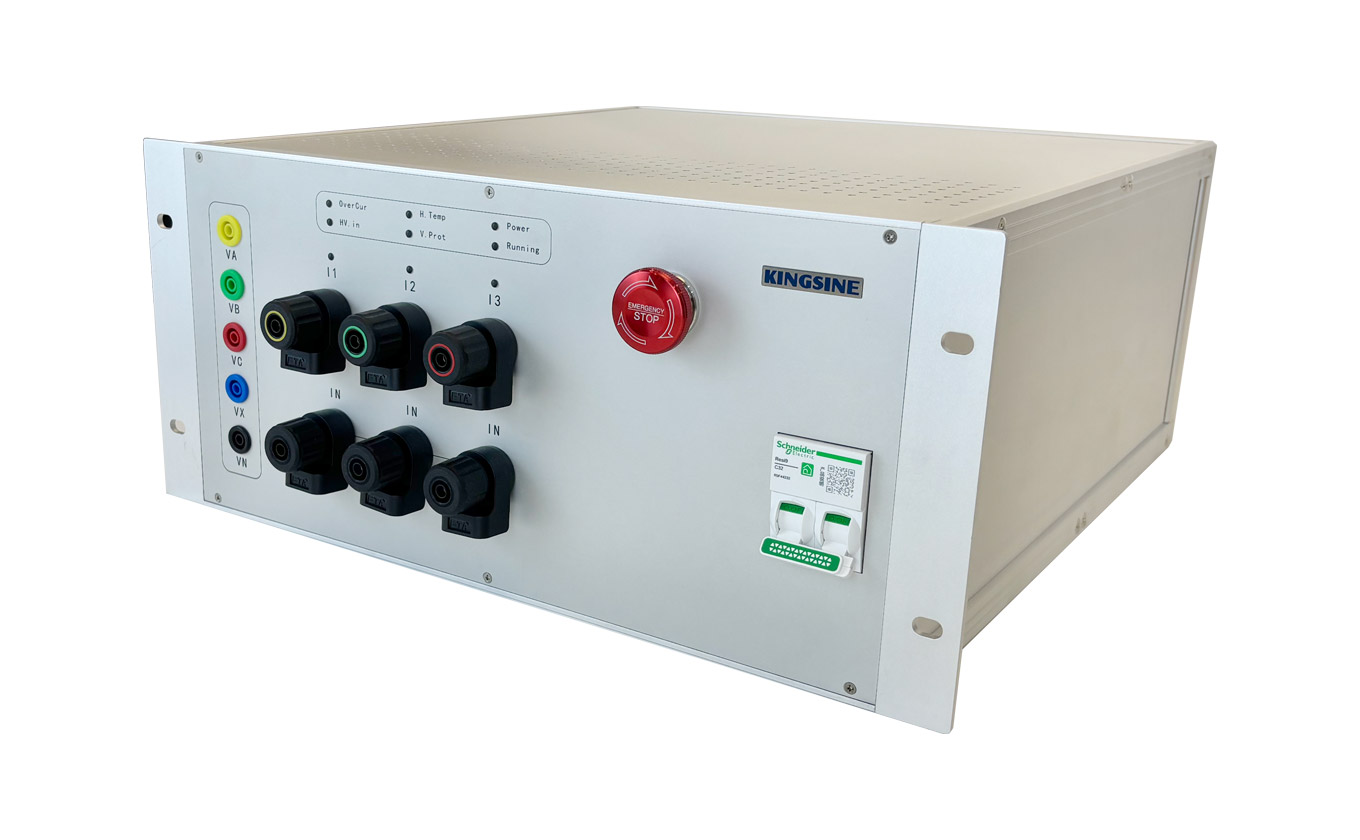

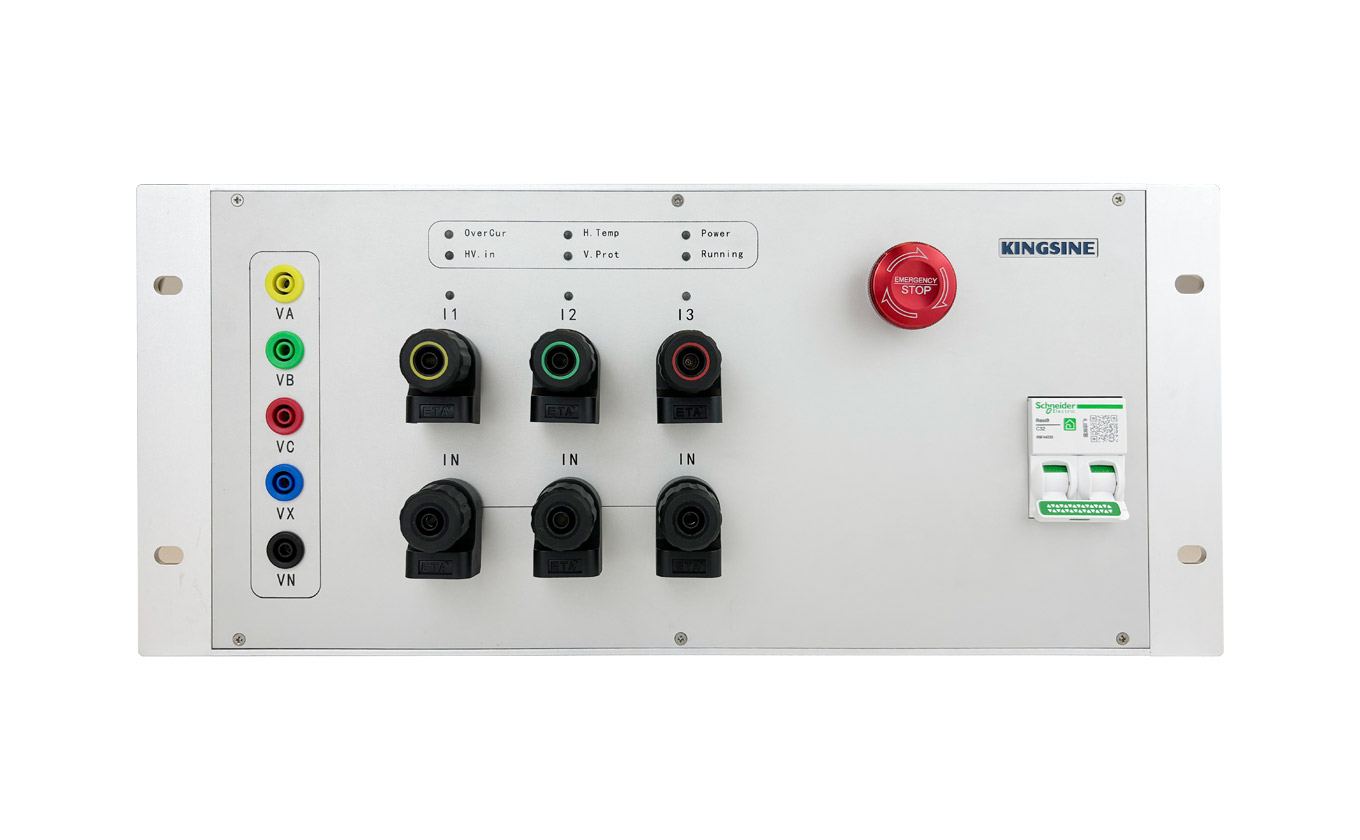

KINGSINE KA30 / KA60 Voltage and Current Amplifier

Name: KA30 / KA60 Voltage and Current Amplifier
Brand: Kingsine Electric Automation Co.,Ltd.

Item No.: 205003

● KINGSINE's KA30 / KA60 voltage and current amplifier is high accuracy, high power, Panel-mounted type real time simulation power amplifier with four-phase voltage and three-phase current;
● Each output channel is independent and simultaneous control of magnitude, Phase angle and frequency values;
● Able to inject DC, AC sine wave and up to 5KHz signals;

● High burdens ability, real time hardware in the loop simulation.

Wanna know more about premium electrical test equipment for sale? Please do not hesitate to contact KINGSINE!

current to voltage converter op amp circuit

Get A Quote

Description

Order Information

Basic Functions

4 channels voltage and 3 channels current. All channels magnitude, Frequency, Phase can be adjust separately.
High linearity, High step response, whole accuracy <0.2%.
Over-heat, Over-load self-protections.
Convenient pause/run function.
19 inch standard chassis panel-mounted design, small dimension. Easy to Centralized panel.

Specifications

Voltage Output		KA30 / KA60	KA30i / KA60i
	Voltage Range	4 × 0~130V RMS	4 × 0~300V RMS
	Power	>65VA / Phase	>150VA / Phase
	Gain	18V/V	40V/V
	Voltage Output Accuracy	<±0.2%
	Rate Vibration of Load Change	<±0.2% (1~30VA Power output, 57.7V)
	Input Impedance	>10kΩ
	Frequency Range	DC-5KHz ±1dB
	Harmonic Distortion Ratio	<0.2%
	Input / Output Delay	<20μS (50Hz)
	Step Response	<20μS
	Input Signal Level	0~7.5V RMS

Current Output		KA30 / KA30i	KA60 / KA60i
	Current Range	3 × 0~30A RMS	3 × 0~60A RMS
	Power	>450VA / Phase	>800VA / Phase
	Gain	4A/V	8A/V
	Current Output Accuracy	<±0.2%
	Rate Vibration of Load Change	<±0.2% (0~2Ω, 5A)
	Input Impedance	>10kΩ
	Frequency Range	DC-5KHz ±1dB	10-5KHz ±1dB
	Harmonic Distortion Ratio	<0.2%
	Input / Output Delay	<20μS (50Hz)
	Step Response	<20μS
	Input Signal Level	0~7.5V RMS

Phase	Phase Accuracy	<0.2°
Power Supply	AC Voltage Input	220V±10%
	Power	2000 VA
	Frequency	50Hz / 60Hz
Others	Temperature	0℃~ 50℃
	Humidity	≤95%, no condensation
	Weight	<20 kg
	Dimension	135mm×445mm×400mm, 3U 19inches

Learn more about using the Voltage and Current Amplifier by watching our detailed video tutorial.

Model	Part No.	Descriptions
KA30	205003	3 × 0~30A, 4 × 0~130V
KA30i	205005	3 × 0~30A, 4 × 0~300V
KA60	205004	3 × 0~60A, 4 × 0~130V
KA60i	205006	3 × 0~60A, 4 × 0~300V
